Templates and Schemas
potato allows deployers to select one or more forms of annotation for their data using predefined schema types in the "annotation_schemes" field of the config yaml.
Deployers fill out which options should be shown and then each scheme is rendered into HTML upon the completion of loading data. These schema configurations allow deployers to quickly add keyboard shortcuts to specific options or tooltips to help annotators.
Existing Task templates
Templates for some existing tasks are available:
Question Answering: yaml config, data example
Sentiment Analysis: yaml config, data example
Animated GIF Appropriateness Annotation: yaml config, data example
Single (Radio) Choice with Active Learning: yaml config, data example
Supported Schemas
potato currently support 4 customizable schemas with examples are shown below.
Multiple Choice

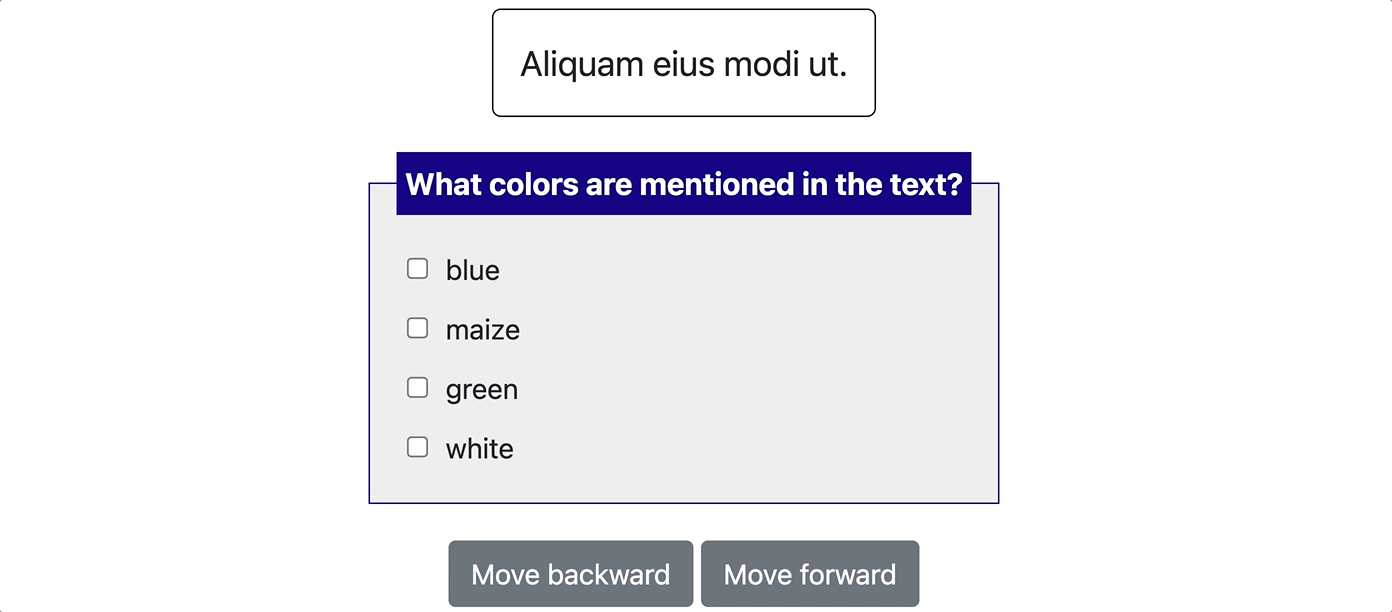

Simple Checkbox Example (yaml config, data example):
"annotation_schemes": [
{
"annotation_type": "multiselect",
"name": "favorite_color",
"description": "What colors are mentioned in the text?",
"labels": [
"blue", "maize", "green", "white"
],
# If true, numbers [1-len(labels)] will be bound to each
# label. Check box annotations with more than 10 are not supported
# with this simple keybinding and will need to use the full item
# specification to bind all labels to keys.
"sequential_key_binding": True,
},
]

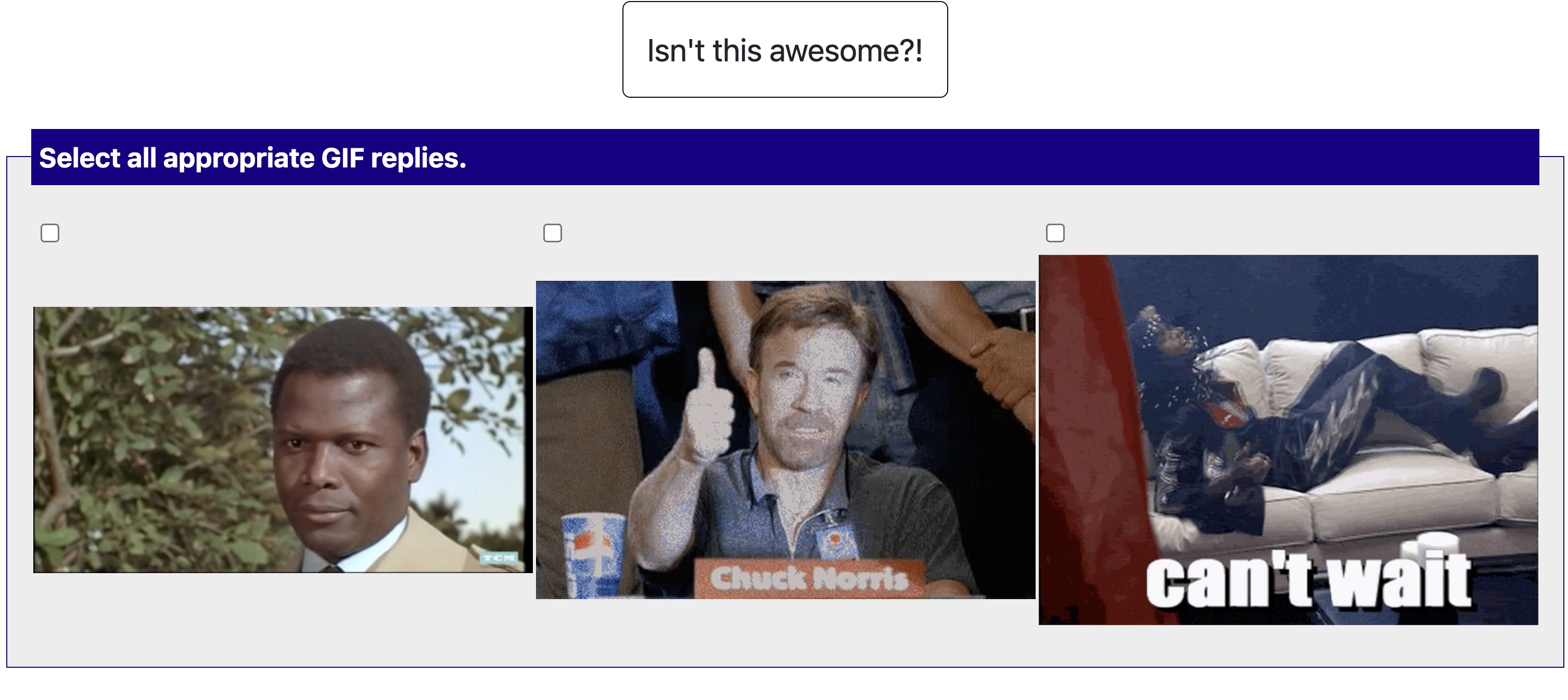

Video as label We also support using video/animated-gif as label for multi-modal annotation (yaml config, data example):
"annotation_schemes": [
{
"annotation_type": "multiselect",
"name": "GIF Reply Appropriateness",
"video_as_label": "True", # <- set this to True for video_as_label annotation
"description": "Select all appropriate GIF replies.",
# Files http://[server]:[port]/data/* will be forwarded from directory data/files/*
"labels": [
{"name": "{{instance_obj.gifs[0]}}", "videopath": "/files/{{instance_obj.gifs_path[0]}}"},
{"name": "{{instance_obj.gifs[1]}}", "videopath": "/files/{{instance_obj.gifs_path[1]}}"},
{"name": "{{instance_obj.gifs[2]}}", "videopath": "/files/{{instance_obj.gifs_path[2]}}"},
],
# If true, numbers [1-len(labels)] will be bound to each
# label. Check box annotations with more than 10 are not supported
# with this simple keybinding and will need to use the full item
# specification to bind all labels to keys.
"sequential_key_binding": True,
},
],

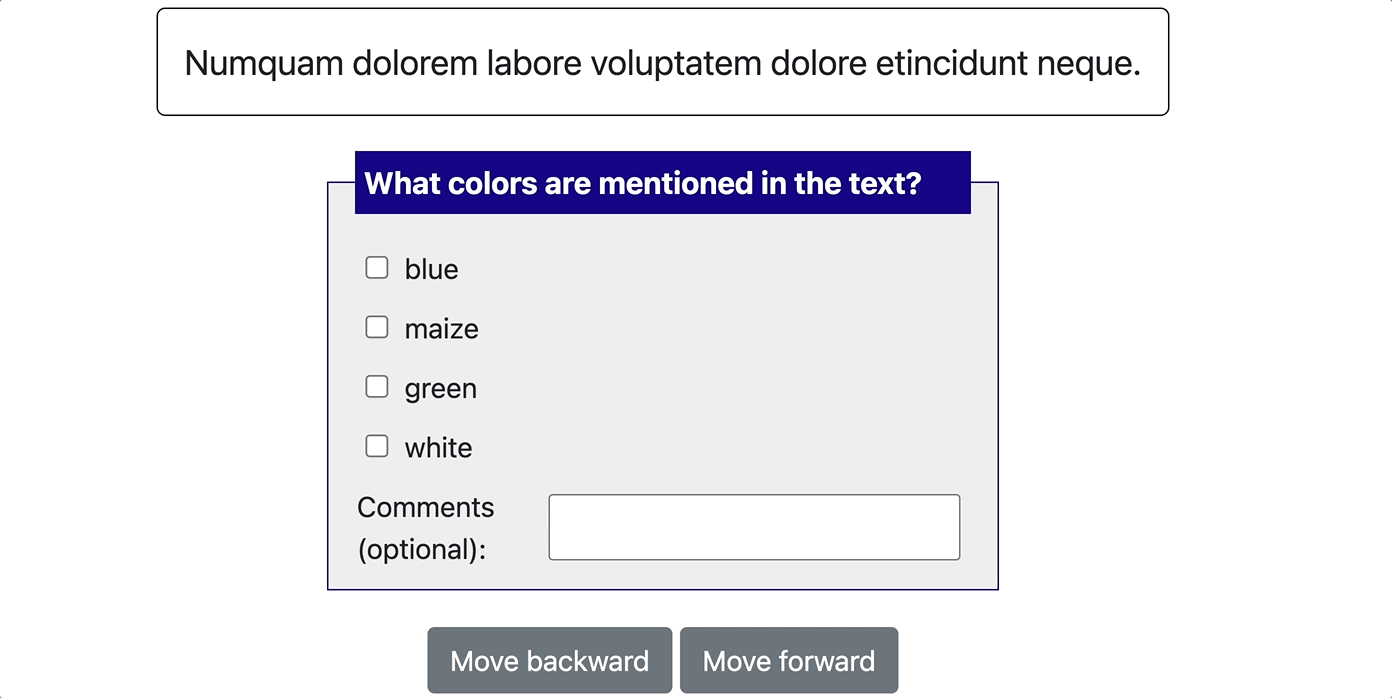

Multiple Choice with Free Response (yaml config, data example):
"annotation_schemes": [
{
"annotation_type": "multiselect",
"name": "favorite_color",
"description": "What colors are mentioned in the text?",
"labels": [
"blue", "maize", "green", "white"
],
# If true, the field will have an optional text box the user can
'has_free_response': True,
# If true, numbers [1-len(labels)] will be bound to each
# label. Check box annotations with more than 10 are not supported
# with this simple keybinding and will need to use the full item
# specification to bind all labels to keys.
"sequential_key_binding": True,
},
],
Single Choice (Radio)
Simple Single (radio) Choice Example (yaml config, data example):
"annotation_schemes": [
{
"annotation_type": "radio",
"name": "favorite_color",
"description": "What food does this text make you want to eat?",
"labels": [
"pizza", "bagels", "burgers", "curry", "tacos",
],
# If true, numbers [1-len(labels)] will be bound to each
# label. Check box annotations with more than 10 are not supported
# with this simple keybinding and will need to use the full item
# specification to bind all labels to keys.
"sequential_key_binding": True,
},
]
Best-Worst Scaling Example (yaml config, data example):
"annotation_schemes": [
{
"annotation_type": "radio",
"name": "bws_best",
"description": "Which is the most positive sentence?",
# If true, display the labels horizontally
"horizontal": True,
"labels": [
"A", "B", "C", "D", "E",
],
"sequential_key_binding": True,
},
{
"annotation_type": "radio",
"name": "bws_worst",
"description": "Which is the most negative sentence?",
# If true, display the labels horizontally
"horizontal": True,
"labels": [
"A", "B", "C", "D", "E",
],
"sequential_key_binding": True,
},
]
Likert

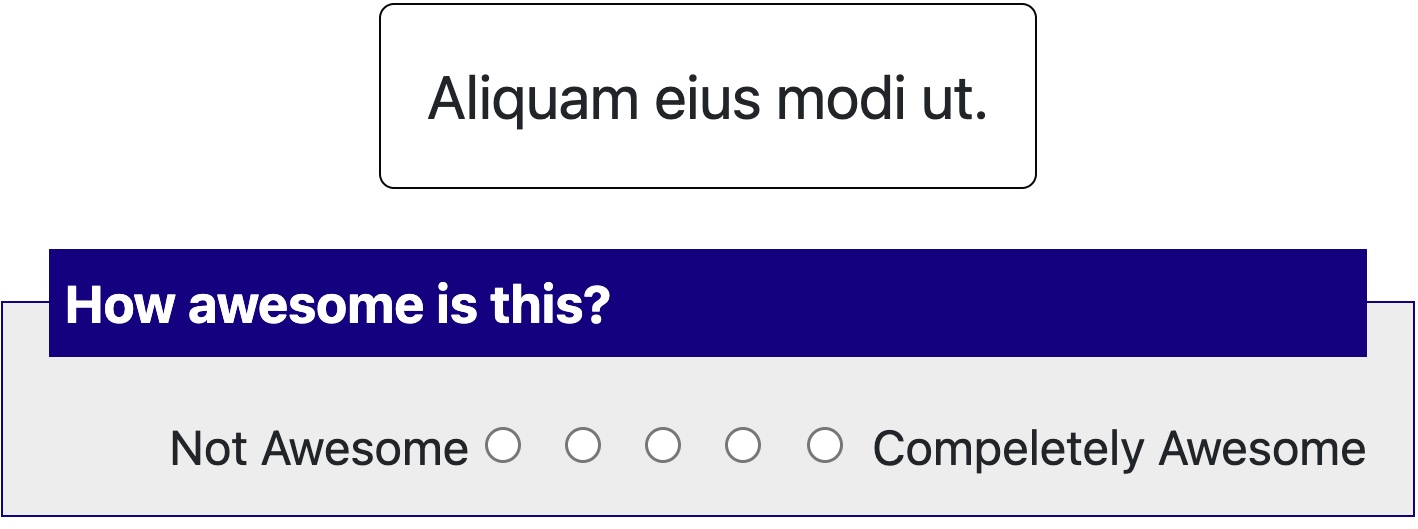

Simple Likert Example (yaml config, data example):
"annotation_schemes": [
{
"annotation_type": "likert",
# This name gets used in reporting the annotation results
"name": "awesomeness",
# This text is shown to the user and can be a longer statement
"description": "How awesome is this?",
# The min and max labels are text shown at each end of the scale
"min_label": "Not Awesome",
"max_label": "Compeletely Awesome",
# How many scale points to show
"size": 5,
# If true, keys [1-size] will be bound to scale responses. Likert
# scales larger than 10 are not supported with this simple
# keybinding and will need to use the full item specification to
# bind all scale points to keys.
"sequential_key_binding": True,
}
]
Text span

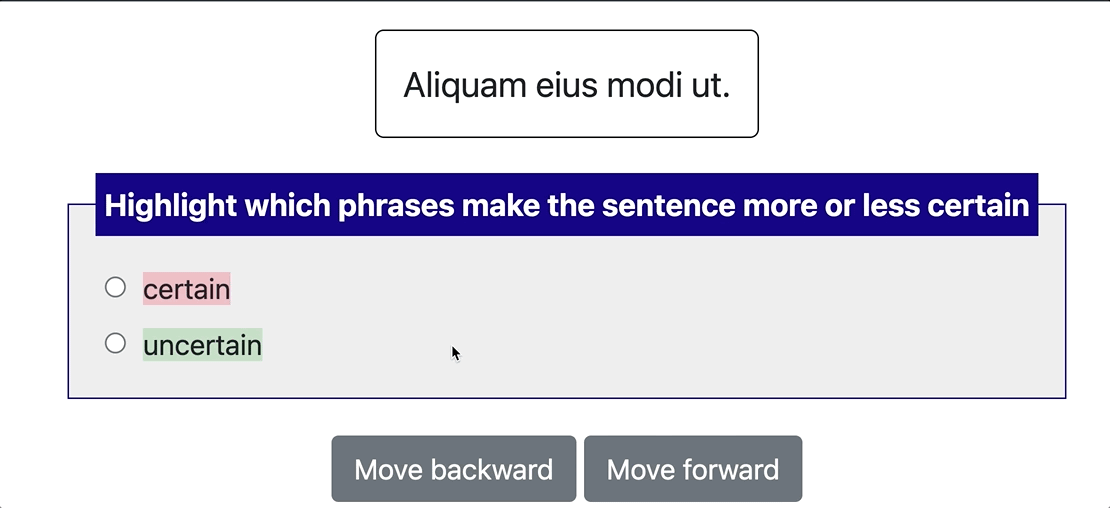

Simple Text Span Example (yaml config, data example):
"annotation_schemes": [
{
"annotation_type": "highlight",
"name": "certainty",
"description": "Highlight which phrases make the sentence more or less certain",
"labels": [
"certain", "uncertain"
],
# If true, numbers [1-len(labels)] will be bound to each
# label. Highlight selection annotations with more than 10 are not supported
# with this simple keybinding and will need to use the full item
# specification to bind all labels to keys.
"sequential_key_binding": True,
},
],
Text Box
Simple Text Box Example (yaml config, data example):
"annotation_schemes": [
{
"annotation_type": "text",
"name": "textbox_input",
"description": "How does this text make you feel?",
}
]
Pairwise comparison
Simple Pairwise Example (yaml config, data example):
#setting up list_as_text input, where the pairs will be inputed as a list of texts and potato will automatically unfold them
"list_as_text": {
"text_list_prefix_type": 'alphabet'
},
"annotation_schemes": [
{
"annotation_type": "text",
"name": "textbox_input",
"description": "How does this text make you feel?",
}
]
Tasks with multiple schemas
potato also support using multiple (different) schemas per annotation task as shown below:
"annotation_schemes": [
{
"annotation_type": "multiselect",
"single_select":"True",
"name": "Issue-General",
"labels": [
{
"name": "Economic",
"tooltip_file": "config/tooltips/ig_economic.html",
"key_value": '1'
},
# ...
]
},
{
"annotation_type": "multiselect",
"name": "Issue-Specific",
"labels": [
{
"name": "Victim: Global Economy",
"tooltip_file": "config/tooltips/sp_global.html"
},
# ...
]
},
# ... more schemes
],
Add the codebook to the page
If you have a url to a codebook (e.g., in Google Docs), you can add it to the page by setting the annotation_codebook_url field in the YAML file. You can also add the task name as the page title using the annotation_task_name field.
# page title
"annotation_task_name": "Example Task",
# If annotators are using a codebook, this will be linked at the top to the
# instance for easy access
"annotation_codebook_url": "https://www.codebook.com",
Choose (or create) your HTML template
Set up the annotation interface by picking an existing HTML template (examples) or creating a custom template:
templates/examples/plain_layout.html: this template covers a wide range of NLP tasks (e.g., text classification, image or gif classification, Likert scales, best-worst scaling, question answering, multiple questions), and is designed to minimize scrolling and optimize placement of the document and questions on the screen.templates/quotes.html: this template specifies the layout when you want to annotate, not a standalone document, but a document in context of some other document (e.g., if you’re annotating replies to a post, and want to show the original post)templates/examples/kwargs_example.html: this template specifies the layout for a task where each document is rated on some Likert scales with differing endpoints (kwargsandother_kwargs). It’s an example of how to use a custom keyword argument in an HTML file.Custom: Create an HTML file that lays out your task pieces and upload it to
potato/templates/. The templates can be easily customized using JINJA expressions to specify where parts of the annotation task and data are populated within the user-defined template. (custom example 1, custom example 2)
Update YAML file with look and feel
In the YAML file, you’ll need to specify what the annotation interface looks like. The html_layout field can be updated per the prior section. The rest of the fields can generally be left untouched.
# The html that changes the visualiztation for your task. Change this file
# to influence the layout and description of your task. This is not a full
# HTML page, just the piece that does lays out your task's pieces
"html_layout": "templates/examples/plain_layout.html",
# The core UI files for Potato. You should not need to change these normally.
#
# Exceptions to this might include:
# 1) You want to add custom CSS/fonts to style your task
# 2) Your layout requires additional JS/assets to render
# 3) You want to support additional keybinding magic
#
"base_html_template": "templates/base_template.html",
"header_file": "templates/header.html",
# This is where the actual HTML files will be generated. You should not need to change this normally.
"site_dir": "potato/templates/",
